Ordinary Least Squares Regression


The OLS command will estimate the parameters of a linear regression equation by the method of ordinary least squares. The general command format is:

OLS depvar indeps / options

where depvar is the dependent variable, indeps is a list of the explanatory variables and options is a list of desired options. There are many useful options on the OLS command and some of these will be illustrated in this guide.

Examples

Appendixes


Home [SHAZAM Guide home]

2-variable Regression Analysis

This example uses the Griffiths, Hill and Judge data set on household expenditure for food. Consider a simple linear regression with FOOD as the dependent variable and INCOME as the explanatory variable. The following SHAZAM program reads the data from the file GHJ.txt, assigns variable names and runs the regression. Note that the READ command assumes that the data file is in the current directory (or folder).

SAMPLE 1 40
READ (GHJ.txt) FOOD INCOME
OLS FOOD INCOME
STOP

The output file of results follows.

 |_SAMPLE 1 40
 |_READ (GHJ.txt) FOOD INCOME

 UNIT 88 IS NOW ASSIGNED TO: GHJ.txt
    2 VARIABLES AND       40 OBSERVATIONS STARTING AT OBS       1

 |_OLS FOOD INCOME

  OLS ESTIMATION
       40 OBSERVATIONS     DEPENDENT VARIABLE = FOOD
 ...NOTE..SAMPLE RANGE SET TO:    1,   40

  R-SQUARE =    .3171     R-SQUARE ADJUSTED =    .2991
 VARIANCE OF THE ESTIMATE-SIGMA**2 =   46.853
 STANDARD ERROR OF THE ESTIMATE-SIGMA =   6.8449
 SUM OF SQUARED ERRORS-SSE=   1780.4
 MEAN OF DEPENDENT VARIABLE =   23.595
 LOG OF THE LIKELIHOOD FUNCTION = -132.672

 VARIABLE   ESTIMATED  STANDARD   T-RATIO        PARTIAL STANDARDIZED ELASTICITY
   NAME    COEFFICIENT   ERROR      38 DF   P-VALUE CORR. COEFFICIENT  AT MEANS
 INCOME     .23225      .5529E-01   4.200      .000  .563      .5631      .6871
 CONSTANT   7.3832      4.008       1.842      .073  .286      .0000      .3129
 |_STOP

SHAZAM automatically includes an intercept coefficient in the regression and this is given the name CONSTANT. On the SHAZAM output, the intercept estimate is listed as the final coefficient estimate.

The results show that the estimated coefficient on INCOME (the slope coefficient) is 0.23225 and the intercept estimate is 7.3832. The estimated equation can be written as:

               FOOD = 7.38 + 0.232 INCOME + ê

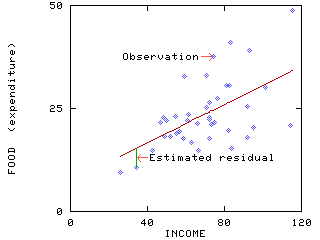

where ê is the estimated residual. The figure below shows a scatterplot of the observations and the estimated regression line. (This figure corresponds to Figure 5.9 of Griffiths, Hill and Judge [1993, p. 187]).

A plot is here

The LIST option on the OLS command will give more extensive output that includes a listing of the estimated residuals and the predicted values for the dependent variable. The use of the LIST option is shown with the SHAZAM command:

OLS FOOD INCOME / LIST

The interested reader can look at the SHAZAM output generated with the LIST option.

  Interpreting t-ratios

The OLS estimation results report the ESTIMATED COEFFICIENT and the estimated STANDARD ERROR. With the assumption that the errors are normally distributed these estimates can be used for hypothesis testing purposes. In the above example, a useful question to ask is: Is the estimated coefficient on INCOME significantly different from zero ? That is, does household income have an effect on the level of household expenditure for food ? To help answer this question the SHAZAM output reports the test statistic:

         T-RATIO = ESTIMATED COEFFICIENT / STANDARD ERROR

The estimated coefficient is significantly different from zero (that is, the null hypothesis of a zero coefficient is rejected) if the t-ratio is "relatively large". The critical value is obtained from tables for the t-distribution with N-K degrees of freedom (N is the number of observations and K is the number of estimated coefficients). These tables are usually printed in the appendix to econometrics textbooks.

For the household food expenditure example the reported t-ratio for the coefficient on INCOME is 4.20. The number of observations is 40 and the number of estimated coefficients is 2 and so the degrees of freedom (DF) is 38. By choosing a signficance level of 5% and considering a two-sided test (so that the critical region in each tail is 2.5%) the critical value obtained from printed tables is 2.024. (Note that this critical value was approximated using the tabulated values for 30 and 40 degrees of freedom that are reported in the tables.) In absolute value, the t-ratio exceeds this critical value. Therefore, there is strong evidence to conclude that the estimated coefficient on INCOME is significantly different from zero.

  Interpreting p-values

When interpreting t-ratios it can be inconvenient to consult statistical tables. To assist the user, SHAZAM reports the P-VALUE on the OLS estimation output. This value is computed as the tail probability for a two-tail test of the null hypothesis that the coefficient is 0. This is the probability of a Type I error - the probability of rejecting a true hypothesis.

The null hypothesis is rejected if the p-value is "small" (say smaller than 0.10, 0.05 or 0.01). For example, if the p-value is 0.078, this means that the null hypothesis cannot be rejected at a 5% significance level but can be rejected at a 10% significance level.

Note: SHAZAM only reports three decimal places for the p-value. So a value that is reported as .000 actually means a value less than .0005. This can be interpreted as meaning that the null hypothesis of a zero coefficient is rejected at any reasonable significance level.

It is possible to use SHAZAM commands to compute p-values for test statistics.

  Interpreting elasticities

For the household food expenditure relationship the estimated coefficient on INCOME measures the marginal effect. This gives the amount by which FOOD changes in response to a one unit change in INCOME.

Another measure of interest to economists is elasticity. This gives the percentage change in the dependent variable that results from a 1% change in the explanatory variable. The final column on the SHAZAM OLS estimation output reports the ELASTICITY AT MEANS.

For the example illustrated here, let B1 be the estimated coefficient on INCOME and let CM and PM be the sample means of FOOD and INCOME respectively. The income elasticity evaluated at the sample means is computed as:

         B1 (PM/CM) =  0.6871

When interpreting the meaning of the estimated coefficients and the elasticities users should take careful note of the units of measurement of the variables in the regression equation.


back [Back to Top] Home [SHAZAM Guide home]

The LIST option

The SHAZAM output that follows shows the use of the LIST option on the OLS command.

 |_OLS FOOD INCOME / LIST

  OLS ESTIMATION
       40 OBSERVATIONS     DEPENDENT VARIABLE = FOOD
 ...NOTE..SAMPLE RANGE SET TO:    1,   40

  R-SQUARE =    .3171     R-SQUARE ADJUSTED =    .2991
 VARIANCE OF THE ESTIMATE-SIGMA**2 =   46.853
 STANDARD ERROR OF THE ESTIMATE-SIGMA =   6.8449
 SUM OF SQUARED ERRORS-SSE=   1780.4
 MEAN OF DEPENDENT VARIABLE =   23.595
 LOG OF THE LIKELIHOOD FUNCTION = -132.672

 VARIABLE   ESTIMATED  STANDARD   T-RATIO        PARTIAL STANDARDIZED ELASTICITY
   NAME    COEFFICIENT   ERROR      38 DF   P-VALUE CORR. COEFFICIENT  AT MEANS
 INCOME     .23225      .5529E-01   4.200      .000  .563      .5631      .6871
 CONSTANT   7.3832      4.008       1.842      .073  .286      .0000      .3129

     OBS.   OBSERVED     PREDICTED   CALCULATED
      NO.    VALUE        VALUE       RESIDUAL
       1    9.4600       13.382      -3.9223                 *  I
       2    10.560       15.352      -4.7918                *   I
       3    14.810       17.254      -2.4440                  * I
       4    21.710       18.241       3.4689                    I  *
       5    22.790       18.599       4.1913                    I  *
       6    18.190       18.710      -.52021                    *
       7    22.000       18.915       3.0854                    I *
       8    18.120       19.446      -1.3265                   *I
       9    23.130       20.002       3.1285                    I *
      10    19.000       20.127      -1.1270                   *I
      11    19.460       20.496      -1.0362                   *I
      12    17.830       21.047      -3.2167                  * I
      13    32.810       21.116       11.694                    I        *
      14    22.130       21.488       .64204                    *
      15    23.460       21.579       1.8815                    I*
      16    16.810       22.038      -5.2284                *   I
      17    21.350       22.703      -1.3526                   *I
      18    14.870       22.805      -7.9348              *     I
      19    33.000       23.738       9.2615                    I      *
      20    25.190       23.752       1.4376                    I*
      21    17.770       24.101      -6.3308               *    I
      22    22.440       24.105      -1.6655                   *I
      23    22.870       24.159      -1.2889                   *I
      24    26.520       24.159       2.3611                    I *
      25    21.000       24.440      -3.4399                 *  I
      26    37.520       24.628       12.892                    I        *
      27    21.690       24.749      -3.0588                  * I
      28    27.400       25.111       2.2889                    I *
      29    30.690       26.200       4.4896                    I  *
      30    19.560       26.393      -6.8332               *    I
      31    30.580       26.558       4.0219                    I  *
      32    41.120       26.737       14.383                    I          *
      33    15.380       26.753      -11.373            *       I
      34    17.870       28.706      -10.836            *       I
      35    25.540       28.706      -3.1664                  * I
      36    39.000       28.973       10.027                    I      *
      37    20.440       29.487      -9.0468             *      I
      38    30.100       30.934      -.83371                   *I
      39    20.900       33.890      -12.990           *        I
      40    48.710       34.199       14.511                    I          *

 DURBIN-WATSON = 2.3703    VON NEUMANN RATIO = 2.4310    RHO =  -.28193
 RESIDUAL SUM =  -.36060E-12  RESIDUAL VARIANCE =   46.853
 SUM OF ABSOLUTE ERRORS=   207.53
 R-SQUARE BETWEEN OBSERVED AND PREDICTED =  .3171
 RUNS TEST:   22 RUNS,   17 POS,    0 ZERO,   23 NEG  NORMAL STATISTIC =   .4755
 |_STOP

The LIST option displays a table of results that contains the following:

OBSERVED VALUE The observed value of the dependent variable.
PREDICTED VALUE The predicted value (also called estimated value or fitted value) of the dependent variable.
CALCULATED RESIDUAL   The difference between the observed and predicted values.

The right hand side of the output displays a rough plot of the residuals.

A property of ordinary least squares regression (when an intercept is included) is that the sum of the estimated residuals (and hence the mean of the estimated residuals) is 0. Note that the final part of the SHAZAM output reports:

 RESIDUAL SUM =  -.36060E-12

That is, SHAZAM computes the sum of residuals as .00000000000036060. This shows that computer calculations can have some imprecision. Different computers may have numerical differences in the reporting of this result.
